Data Center & Edge Computing Capacitors

Data centers are the backbone of the modern digital economy, powering cloud computing, artificial intelligence, streaming services, and enterprise IT infrastructure. Every server, switch, and storage array in a data center relies on dozens — sometimes hundreds — of capacitors for reliable power delivery. At Specap, we supply the high-reliability capacitors that keep mission-critical data center infrastructure running 24/7/365. #

Server power supplies (PSUs) are among the most demanding applications for capacitors. Modern server PSUs operate at 80 PLUS Titanium efficiency levels exceeding 96%, and every capacitor in the power path must perform flawlessly under continuous load. Key capacitor positions in a server PSU include: - **Input Bulk Capacitors**: Aluminum electrolytic capacitors rated at 400V-450V smooth the rectified AC mains input. These capacitors must handle high ripple currents at twice the line frequency (100Hz or 120Hz) plus switching frequency harmonics. Nichicon GY series and Panasonic EE series are popular choices, offering 105°C rated life of 10,000-12,000 hours with high ripple current capability. - **PFC Output Capacitors**: The power factor correction stage output requires capacitors with low ESR and high ripple current ratings. At 400V DC bus voltage with continuous high-frequency ripple from the PFC boost converter, long-life electrolytic capacitors are essential. Capacitor failure here takes the entire server offline. - **Primary-to-Secondary DC-DC Capacitors**: The intermediate bus architecture common in modern data center PSUs uses 48V or 12V intermediate rails with point-of-load converters. Polymer aluminum electrolytic and polymer tantalum capacitors provide the low ESR needed for efficient, stable power conversion at these intermediate voltages. - **Output Filter Capacitors**: Server PSU outputs at 12V, 5V, and 3.3V require low-ESR capacitors for tight voltage regulation. Conductive polymer capacitors from Panasonic (SP-Cap, OS-CON) and Nichicon (PCJ, PCR series) are the standard choice, offering ESR values below 10mΩ and excellent high-frequency performance. #

Enterprise servers and networking equipment use hot-swappable power supplies that can be replaced without shutting down the system. This creates unique capacitor challenges: - **Inrush Current Limiting**: When a PSU is inserted into a live backplane, the uncharged input capacitors draw a massive inrush current. Pre-charge circuits using NTC thermistors and capacitors limit this inrush to safe levels. The capacitors in pre-charge circuits must withstand thousands of insertion cycles over the equipment's life. - **Hold-Up Time**: During a hot-swap event, the remaining PSU(s) must maintain voltage to the server. Bulk capacitors provide ride-through energy during the brief transition period. Selecting capacitors with adequate energy storage — typically 10-20ms of hold-up time at full load — is critical for seamless failover. - **Redundant PSU Coordination**: In N+1 redundant configurations, capacitors in the ORing circuit (where PSU outputs combine) must handle the full load current and associated thermal stress. Low-ESR capacitors minimize power losses in this shared output stage. #

Edge computing pushes processing closer to data sources — in cell towers, retail locations, factory floors, and even autonomous vehicles. Edge computing nodes face environmental challenges that traditional data centers avoid: - **Wide Temperature Range**: Edge nodes may operate in unconditioned environments from -20°C to +65°C ambient. Capacitors must maintain performance across this range without derating. KEMET T520 and T530 polymer tantalum series, rated to 125°C, provide the temperature margin needed for edge deployments. - **Compact Form Factors**: Edge nodes are often space-constrained. Polymer capacitors and high-capacitance MLCC from Murata (GRM series) and TDK (C series) deliver high capacitance density in small packages, enabling compact power supply designs. - **Vibration and Shock**: Edge nodes in industrial and transportation environments face mechanical stress. Capacitors with robust terminations and lead configurations — including conductive polymer solid types that eliminate liquid electrolyte — provide superior reliability under vibration. #

The explosive growth of artificial intelligence and machine learning workloads has made GPU and AI accelerator power delivery one of the most challenging capacitor applications in data centers: - **Extreme Transient Response**: AI accelerators like NVIDIA H100 and AMD Instinct MI300 draw 700W or more, with load steps that can change current demand by hundreds of amps in microseconds. The voltage regulator module (VRM) capacitors must respond instantly to prevent voltage droops that cause computational errors. Multi-layer ceramic capacitors (MLCC) in 0402 to 1210 packages from Murata and TDK provide the low ESL needed for fast transient response, while bulk polymer capacitors from Panasonic and Nichicon supply the energy reservoir. - **High Current Density**: Modern GPU power delivery uses multiphase VRMs with 16-24 phases, each requiring input and output capacitors. MLCC capacitors rated for high DC bias voltage (X5R and X7R dielectrics with minimal capacitance loss) and polymer capacitors with very low ESR (3-8mΩ) are essential for efficient, stable power delivery. - **Thermal Management**: GPU boards dissipate significant heat, and VRM capacitors operate in elevated ambient temperatures. Using 105°C or 125°C rated capacitors with appropriate derating ensures the capacitors' operating life meets the server's expected 5-7 year deployment cycle. #

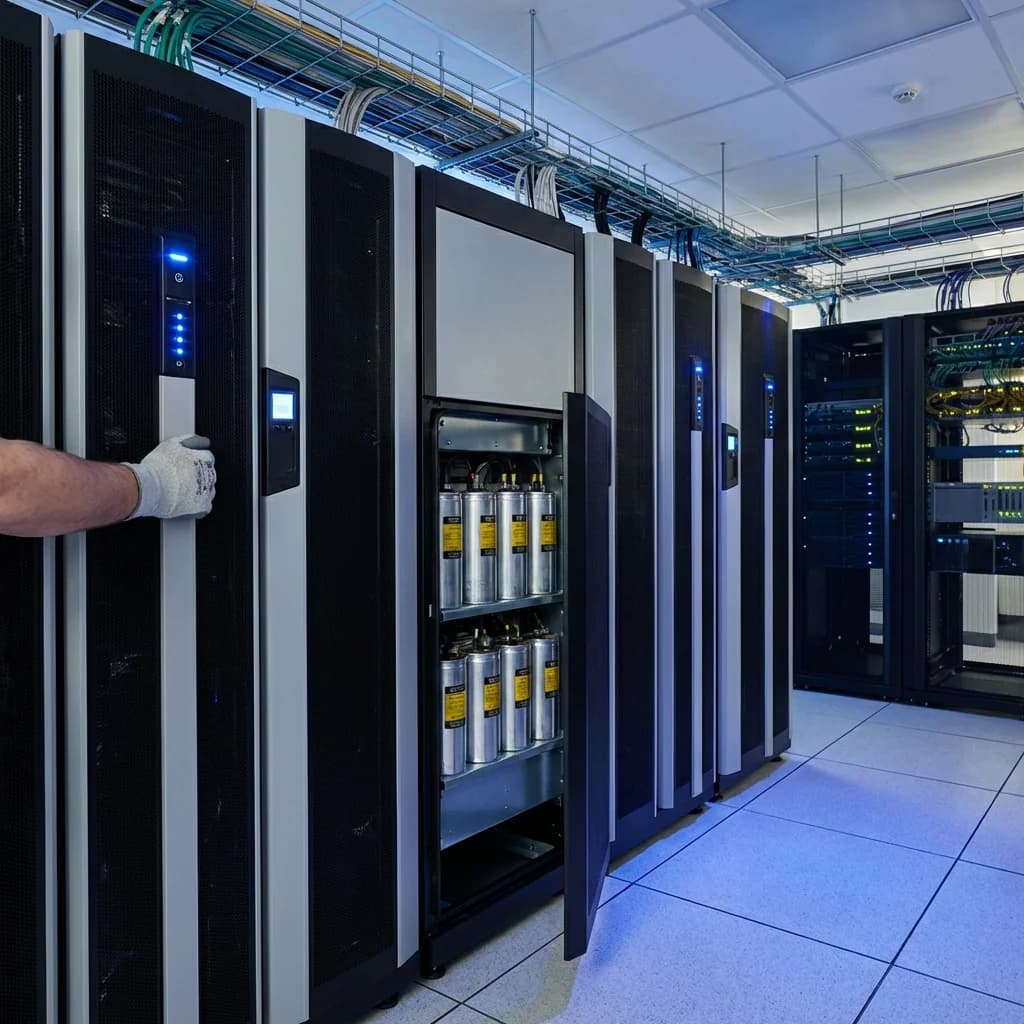

Uninterruptible power supplies protect data center equipment from power disturbances. Capacitors play critical roles throughout the UPS: - **DC Bus Capacitors**: Large aluminum electrolytic or film capacitors on the UPS DC bus store energy and filter rectifier output. For three-phase UPS systems rated at 100kW and above, these are often screw-terminal aluminum electrolytic capacitors from Nichicon (LGU, LGN series) or Cornell Dubilier (DCMC series), rated at 400V-500V with ripple current ratings exceeding 10A per capacitor. - **Inverter Output Filter**: Film capacitors in the output filter shape the PWM switching waveform into a clean sine wave for the protected load. Polypropylene film capacitors offer the self-healing capability and long life needed for this always-on application. - **Battery Charger Capacitors**: The rectifier and charger section uses electrolytic capacitors for DC filtering. These operate continuously and must have sufficient life ratings — KEMET ALS30 and ALS31 screw-terminal series offer up to 15,000 hours at 105°C. #

Power distribution units (PDUs) and rack-level power systems use capacitors for EMI filtering, power factor correction, and transient suppression: - **X and Y Safety Capacitors**: EMI filter capacitors in PDU input stages must meet IEC 60384-14 safety requirements. Film capacitors rated for Class X2 or Y2 applications filter conducted emissions to meet FCC and CE requirements. - **Surge Protection**: Metal oxide varistors (MOVs) work alongside capacitors to clamp transient voltages. Capacitors in surge protection circuits must withstand repeated surge events without degradation. #

With over 40 years of experience in capacitor distribution, Specap understands the reliability demands of data center infrastructure. We stock capacitors from Nichicon, Panasonic, KEMET, Murata, TDK, Rubycon, and other leading manufacturers, with same-day shipping on in-stock items. Our technical team can help you select the optimal capacitor for your specific power supply topology, thermal environment, and reliability requirements. For legacy and end-of-life server platforms, our [obsolete capacitor sourcing](/obsolete-capacitors) network can locate hard-to-find replacement parts to extend equipment life.
